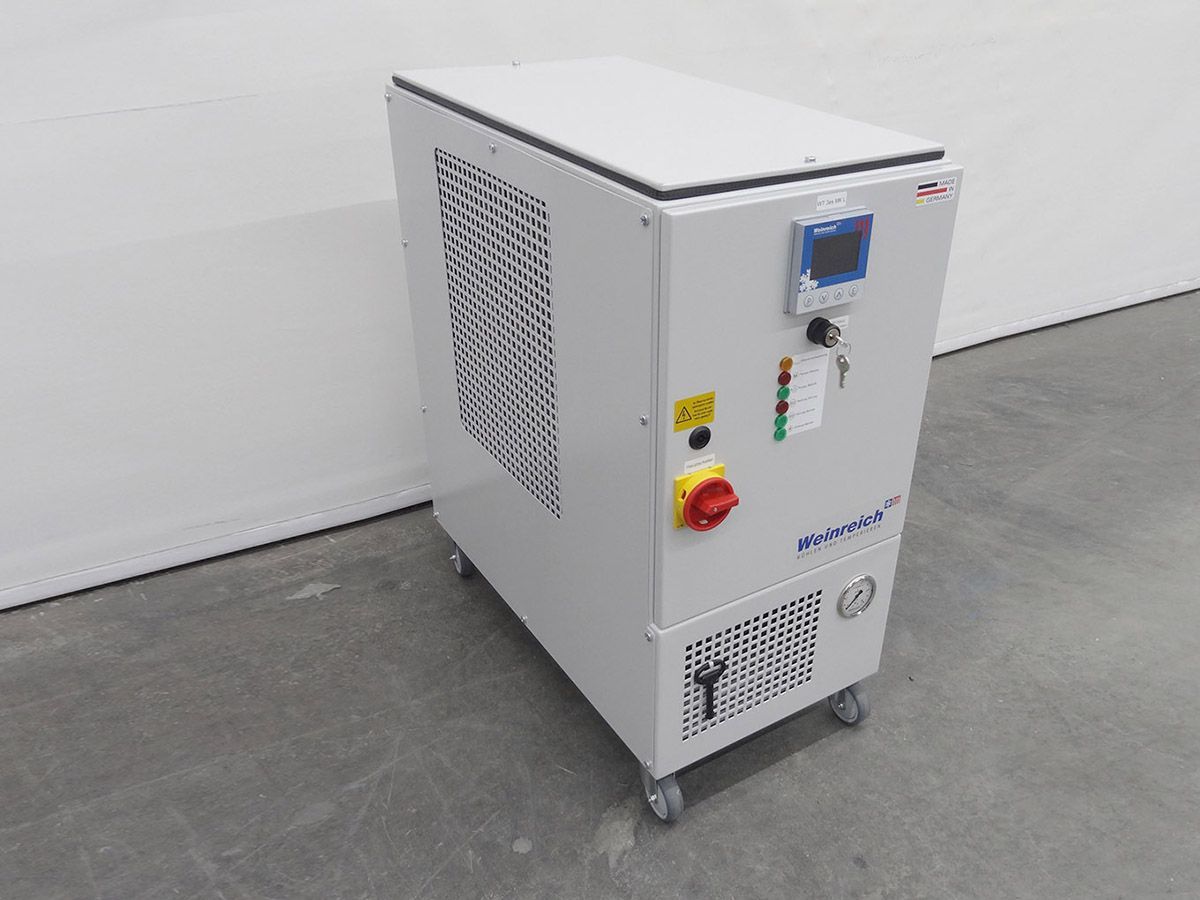

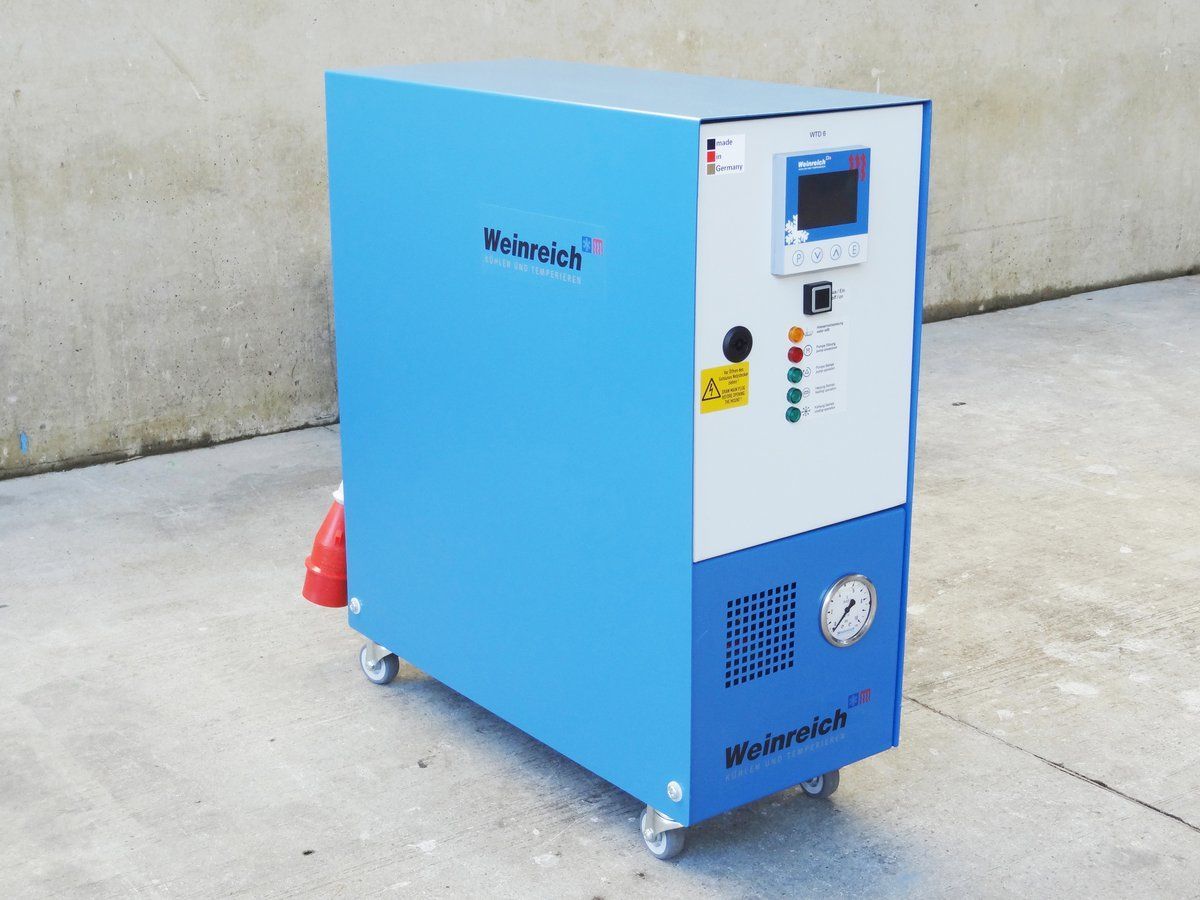

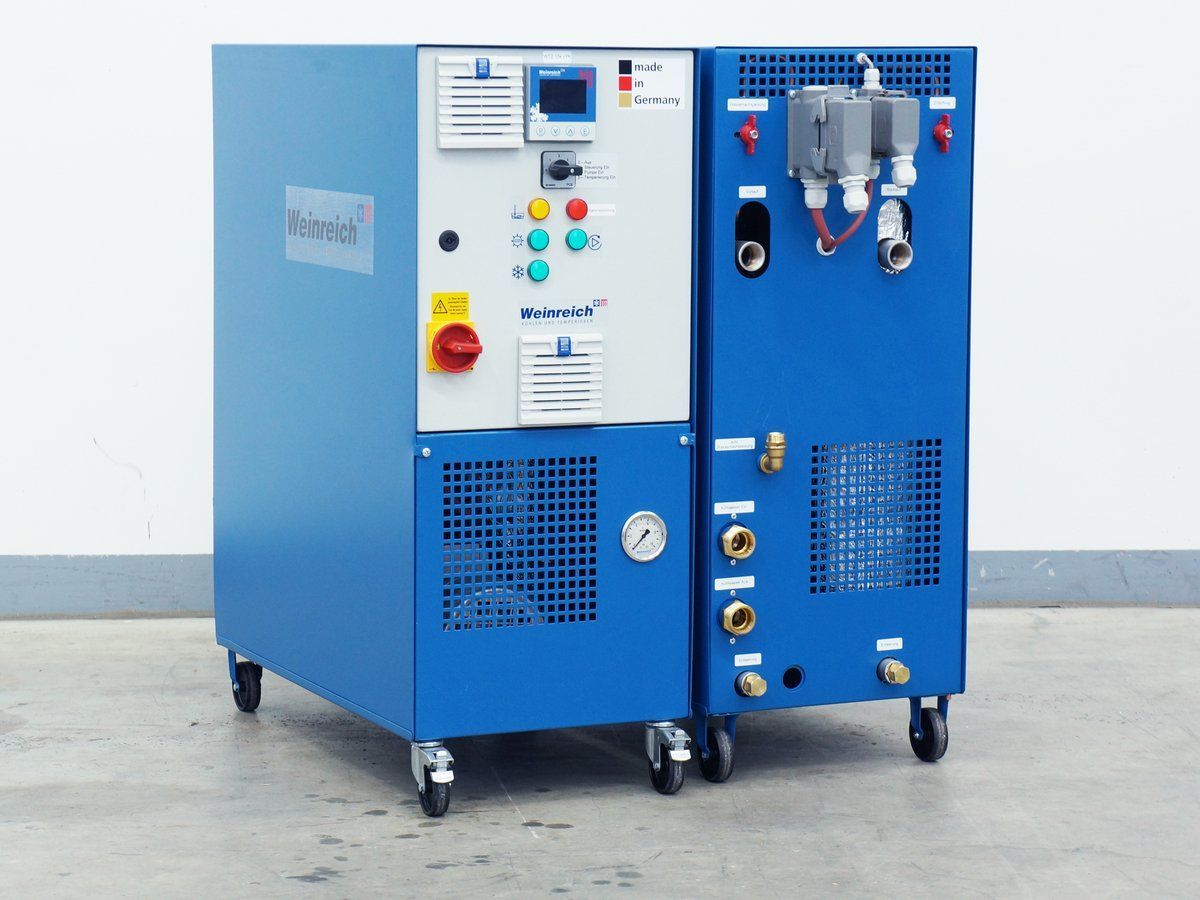

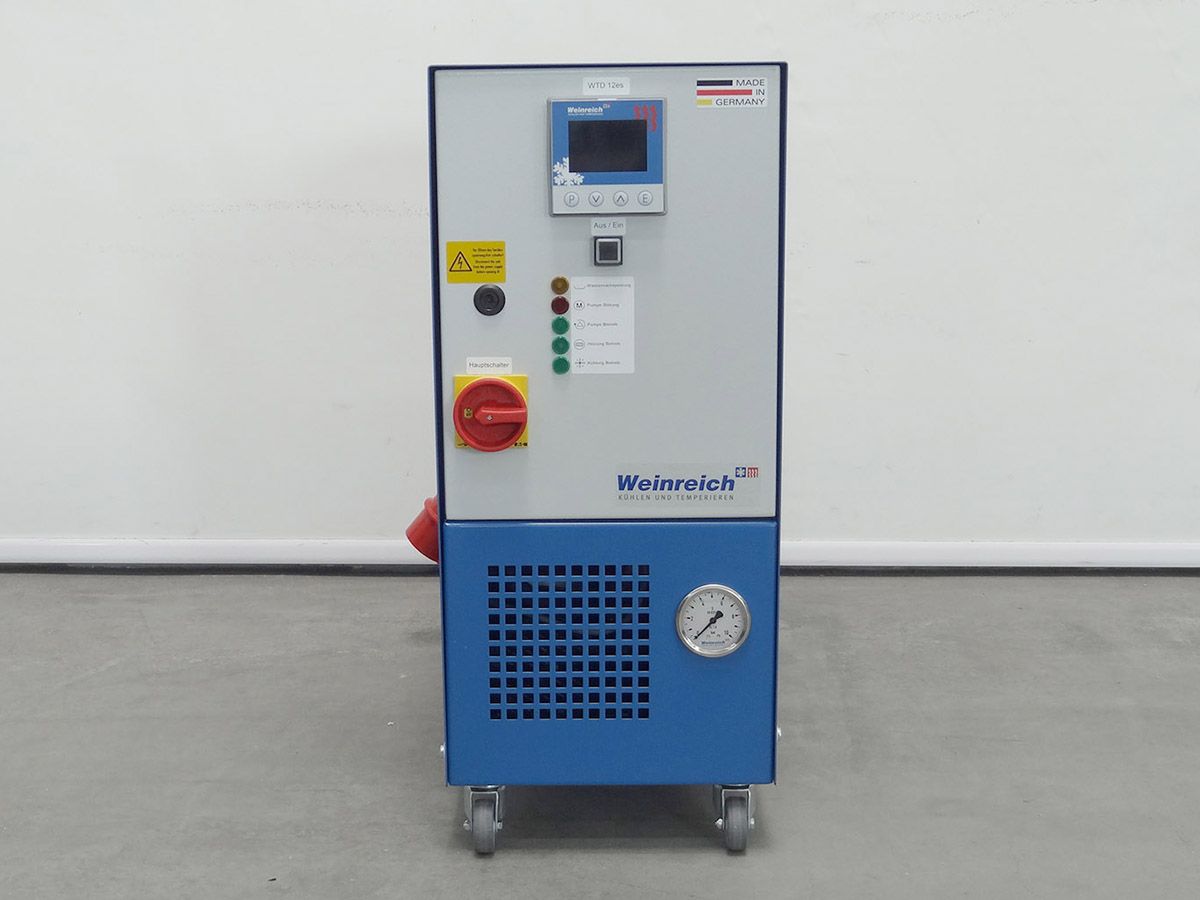

Water temperature control units, WT...es and WTD...es ⇣

With a closed system for temperature control of water circuits up to 95°C and 140°C


WEINREICH water temperature control devices are characterized by service friendliness, simple operation and generous dimensioning of the cooling heat exchanger for performance reserve in case of contamination as well as low surface load of the integrated heating rods.

  • Equipment

    • Microprocessor-controlled temperature controller, modular design
    • with PID behavior and digital setpoint and actual value display
    • alarm contacts, programmable
    • water-carrying parts made of non-corrosive material
    • stainless steel plate heat exchanger as a cooling exchanger
    • stainless steel screw-in heater integrated in the water flow pipe
    • safety thermostat with heating current shutdown
    • SSR semiconductor technology (from 18 kW heating output)
    • volume flow and system pressure display
    • automatic level monitoring via stainless steel filling level electrodes
    • for automatic water replenishment, either from the cooling water line or a separate
    • dirt trap connection in the cooling water inlet and separate water replenishment
  • Special Designs

    • automatic ventilation
    • customer-specific temperature control systems (e.g. impulse temperature control)

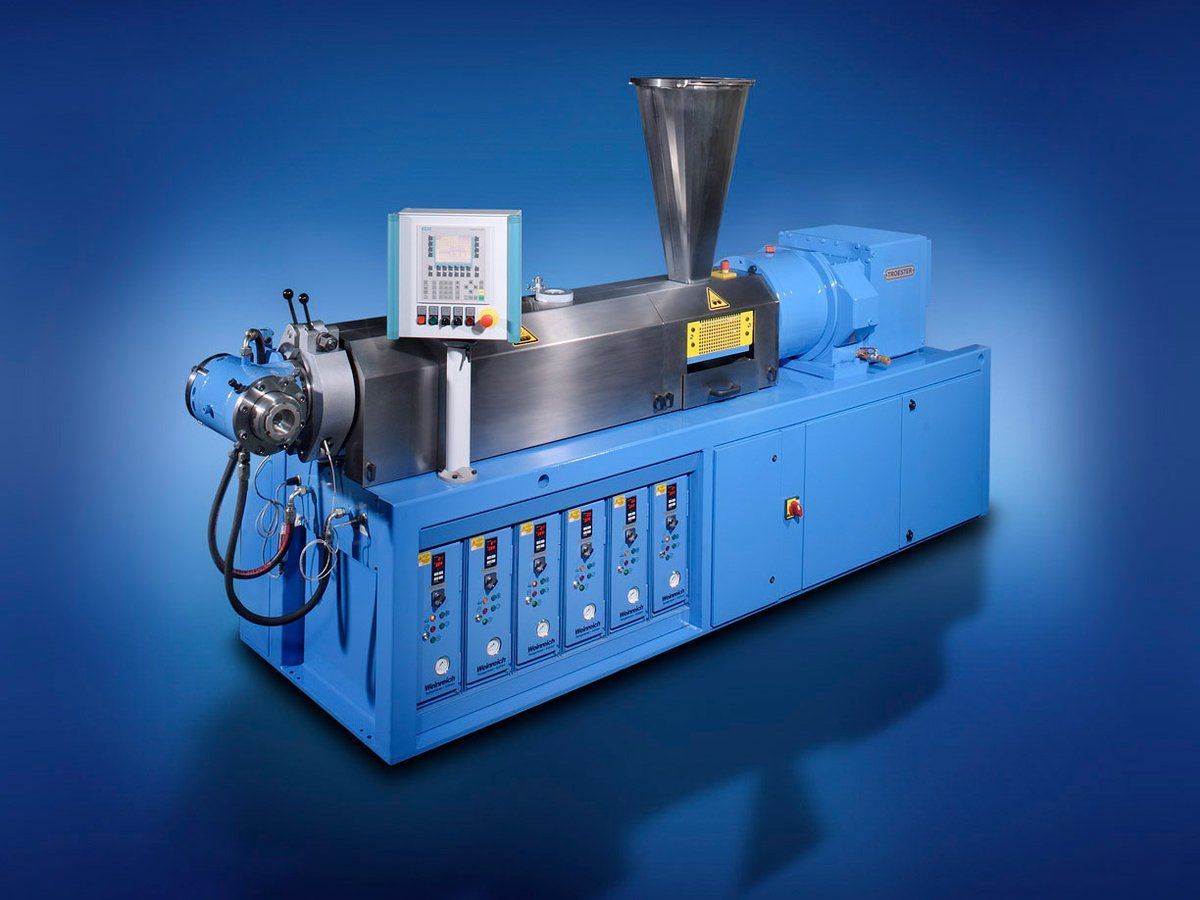

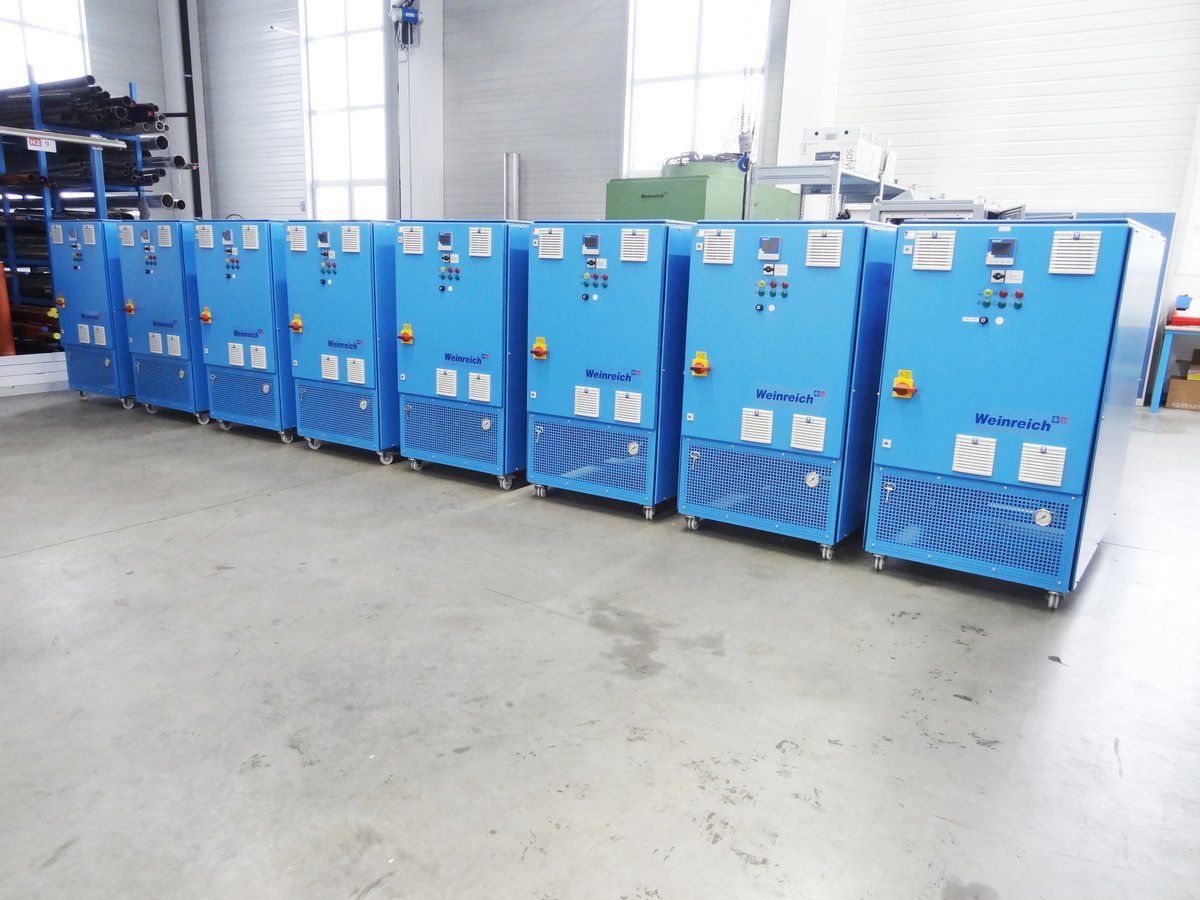

    • modular design and multi-circuit systems with central cooling water connections
    • devices with fully automatic function (e.g. heating and cooling time specifications)

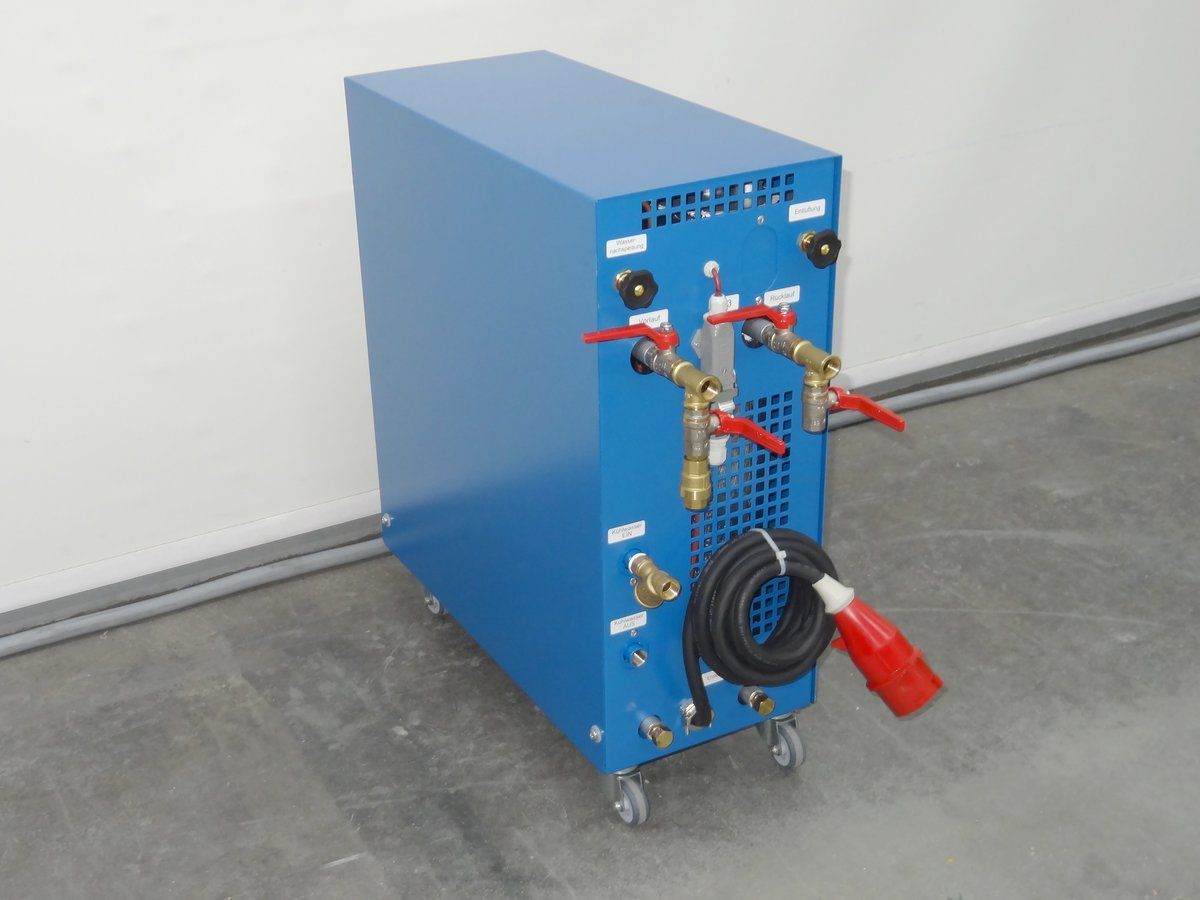

    • manual and automatic tool blow-out devices
    • external and return temperature sensors with temperature control and/or Control
    • Profinet, Profibus, DeviceNet, CAN bus and PC/master computer connection
    • Interface communication for all common machine controls
    • Special paint finishes according to customer specifications

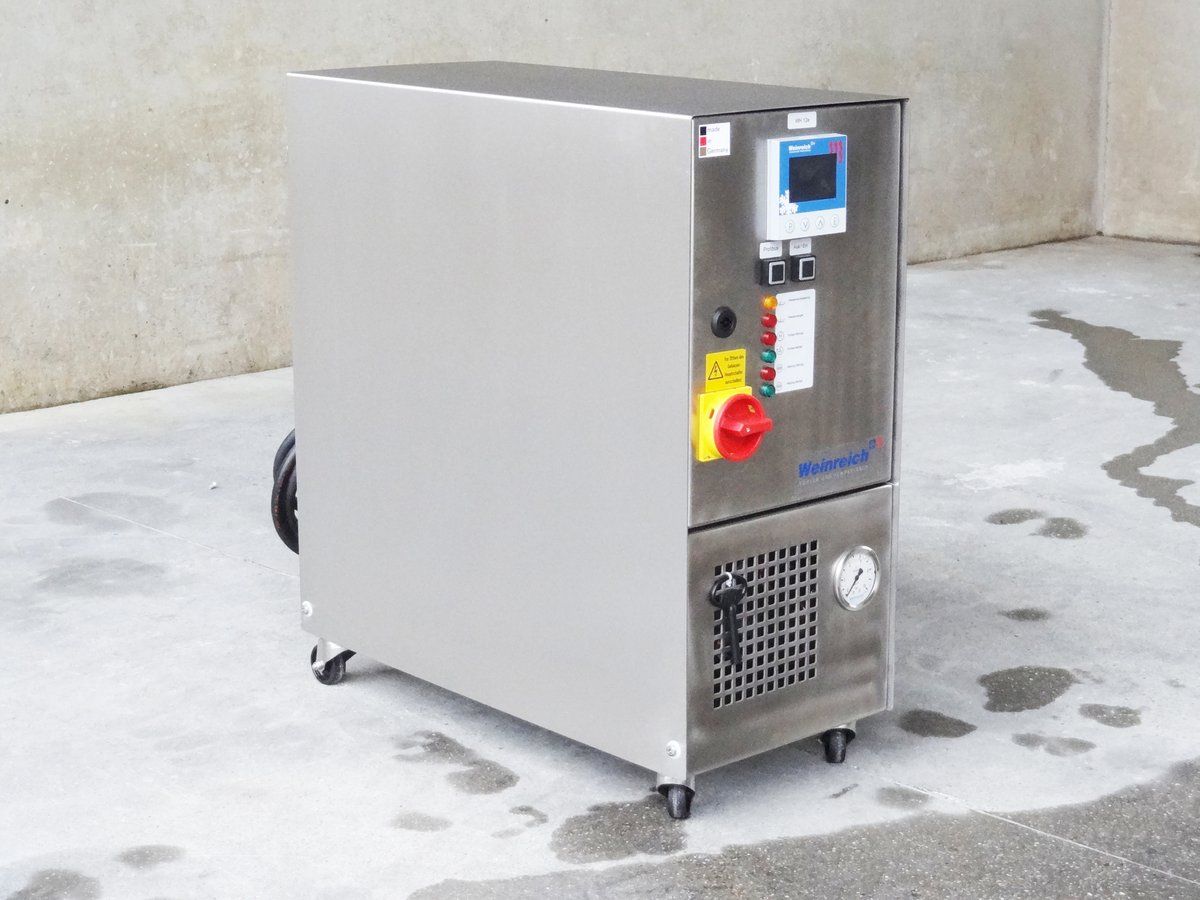

    • Housing made of stainless steel
    • Piping of all components that come into contact with media made of stainless steel
    • All devices are also available without cooling as heating devices or without heating as temperature control with process heat
  • Options

    • VP increased pump capacity
    • MK sealless pump with magnetic coupling
    • FU frequency-controlled pump
    • SP special voltage versions
    • VK increased cooling capacity
    • VKK calcification-free cooling
    • VA stainless steel versions
    • DA flow indicator
    • DK direct cooling
    • D steam-heated
    • HW hot-water heated
  • Downloads

    Product data sheet WT/WTD (PDF)
